is a widely applied standard format for metabolic pathways.
Metannogen can export the network as SBML.
For many cases this file format will be sufficient.
However, depending on the project, there may be project specific
requirements for the export file. This is particularly the case
for formats other than SBML such as
CSV.
This tutorial explains, how the export formats of Metannogen are
customized. If you just want other non-standard XML attributes
added to the <reaction...>-tag you do not need this
tutorial. Just use the command line
option -attributes. Complex XML structure after the closing
reaction tag may also be inserted. Simply mark the
text in the multiline text area of the dataset with XML_BEGIN and XML_END.
This creates an attribute with name "XML".
The Text is directly inserted after the reaction definition
As a test case we assume that the biochemical reactions should be
stored in a .
For this purpose Metannogen would need to export a file
with syntax.
This tutorial explains, how the export scripts of Metannogen are modified by the user.
Starting Metannogen
Before working up this tutorial, you should be familiar with the program.
Please start Metannogen.
Load a small dataset file or or create a few datasets.
Export

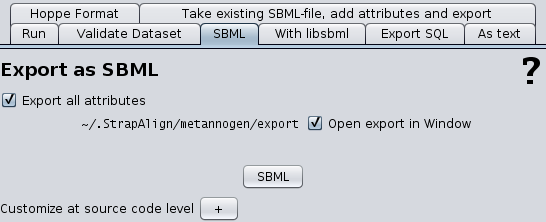

Figure: Screen-shot of the export dialog.
Each individual export format (SBML, Text, SQL) has its own tab in the export dialog.
Each tab has 7 panels such that the user could have up to seven different versions of the
export script.
The data in the datasets are exported to the respective format on pressing one of the "Export"-button.
With the "Change"-button, the source code can be modified.
Open the export dialog "Menu-bar>File>Export>Export to SQL" (See figure)
Select the "Export SQL"-Tab.
Press the "Export SQL" button in panel 1.
A text pane with the exported data appears.
This SQL-format is incomplete and we need to modify it.
Expand the "+ Modify java source" toggle in the bottom of the dialog.
There are 7 panels
because you could modify and use 7 distinct versions. Regard the
panel 1.
Press the "Change" button to open the source code.
Metannogen will choose a text editor with syntax highlighting
from the text editors installed on your computer. If you prefer
a different editor then press the "Settings" button.
Find the line
sb=new StringBuffer(100*1000);
A StringBuffer is a mutable sequence of characters. Text can be appended with the append method.
Please insert the following line after the StringBuffer-declaration:
sb.append("Hello World\n");
Then save the modified text.
The Backslash-n is interpreted as a character.
Press the "Export SQL" button again. The "Compiler messages" window will pop up.
If the compiler reports syntax errors, these need to be corrected correct.
Deliberately create a syntax error, for example forget the trailing semicolon.
Then save the file, press "Export SQL" again and watch the error report.
In case of
successful compilation
a is generated. The
toString()-method of this class is called by Metannogen to obtain the text for the output file.
Please find the "Hello world"
string in the exported text.
More complicated changes
As you are familiar with the modify-save-compile-run cycle you are ready for more complicated changes.
Only four classes are needed.
Study the class descriptions for the following four classes:
: contains the networks in form of ReactionCollection-objects.
: contains the reactants, products, stoichiometry numbers and compartments.
: is the container of all Reaction objects.
: contain the name and attributes of reactants or products.
Usage from the command line
The modified export script can also be used from the command
line without GUI.
This allows usage of Metannogen in automated scripts.
The dataset source needs to be specified with the -datasets option.
The file name needs to be given after the -toSQL1 option.
If the source code in panel 2 was modified then the option -toSQL2 would be required.
